Quick answer
Warwick James elevators are commonly supplied as a three-instrument set: straight, right and left. Their fine working ends can support controlled mobilisation of selected roots and root fragments. The curved right and left instruments are selected according to access and the direction of engagement—not simply according to which hand the clinician uses.
Website article
A Warwick James set often looks simple until the clinician must decide which curved instrument will engage the root without directing force toward an adjacent tooth or thin socket wall.

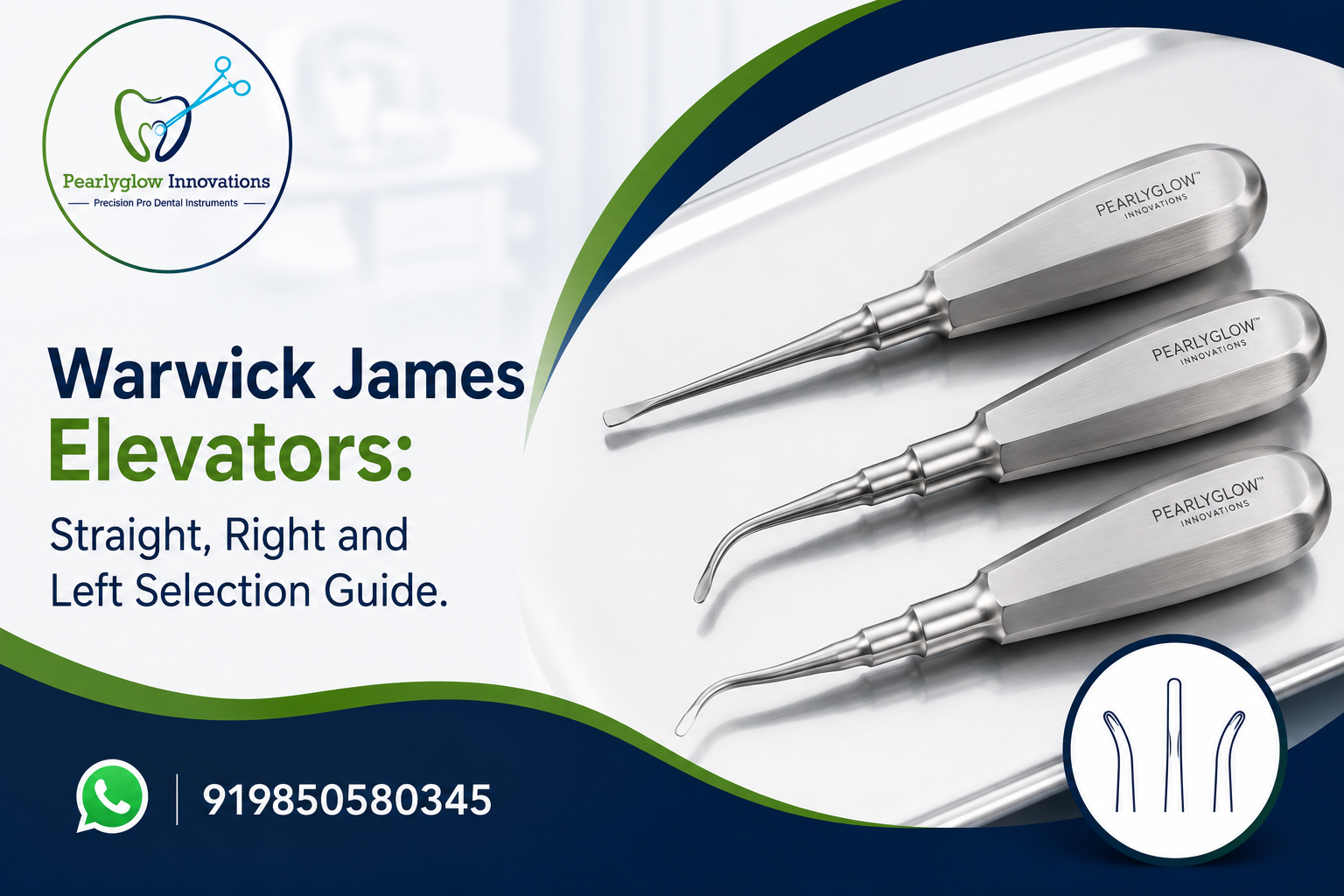

Understanding the Three Instruments
Straight Warwick James
The straight pattern may assist with selected accessible roots where a direct path and controlled application point are available. Its fine working end can be useful where a larger straight elevator would be unnecessarily broad.
Right Warwick James
The right pattern has a curved working end designed to approach and rotate in a specific direction. It should be selected according to the location of the root and the side from which safe access is possible.
Left Warwick James
The left pattern mirrors the right instrument. Correct identification is important because an incorrectly oriented working end may fail to engage or may direct force away from the intended path.
Clinical Selection Factors
| Instrument | Selection question | Clinical caution |
Straight | Is there a direct, visible path to the selected root? | Do not force into an inaccessible apical area |
Right | Does its curvature place the engaging surface against the root in the required direction? | Right does not mean right-handed operator |
Left | Does the mirrored working end provide safer directional engagement? | Confirm orientation before entering the socket |
All three | Is the purchase point stable and the force controlled? | Fine working ends are not intended for heavy levering |
Why Right and Left Do Not Mean Right-Handed and Left-Handed
The designation refers to the geometry and orientation of the working end. The clinician should assess which instrument places the concave or engaging surface against the root and which rotational direction moves the root toward the available space.
Common Causes of Slippage
Slippage may occur when the wrong side is selected, the working end does not contact hard root structure, the purchase point is too shallow, the tip is damaged, or excessive force is applied before stable engagement. Fine elevators should not be driven blindly into the socket.
How Students Can Learn the Set
Students should study the working-end orientation outside the mouth, compare the right and left patterns side by side, and practise identifying the concave and convex surfaces. A labelled photograph or tray guide can prevent confusion during clinical setup.
PearlyGlow Warwick James Set
PearlyGlow offers Warwick James straight, right and left elevators as a coordinated set. The final product page should show each working end at the same angle, label the right and left instruments clearly, and include exact dimensions so doctors, students and dealers can compare the set accurately.
Frequently Asked Questions
Are Warwick James elevators only for root tips?
They are commonly associated with selected roots and root fragments, but suitability depends on access, root size and the purchase point. Very small apical fragments may require a more specialised instrument or surgical approach.
How can I identify the right and left versions?
Place the instruments side by side and compare the curvature and working-end orientation. PearlyGlow should provide a labelled product photograph to remove ambiguity.
Can they be used as heavy levers?
No. Their relatively fine working ends require controlled force. Heavy levering can bend or damage the instrument and surrounding tissues.
Why does the set include a straight instrument?
The straight option provides a direct approach for selected accessible roots where a curved right or left path is unnecessary.
Should the adjacent tooth support the elevator?
No. A neighbouring tooth should not be used as the fulcrum for elevator force.
Need a Warwick James Straight/Right/Left Set?
Message 919850580345 PearlyGlow with: Doctor/Dealer/Student | Individual Instrument or Set | Quantity | City
WhatsApp 919850580345 PearlyGlow for product details, catalogue and applicable pricing.
